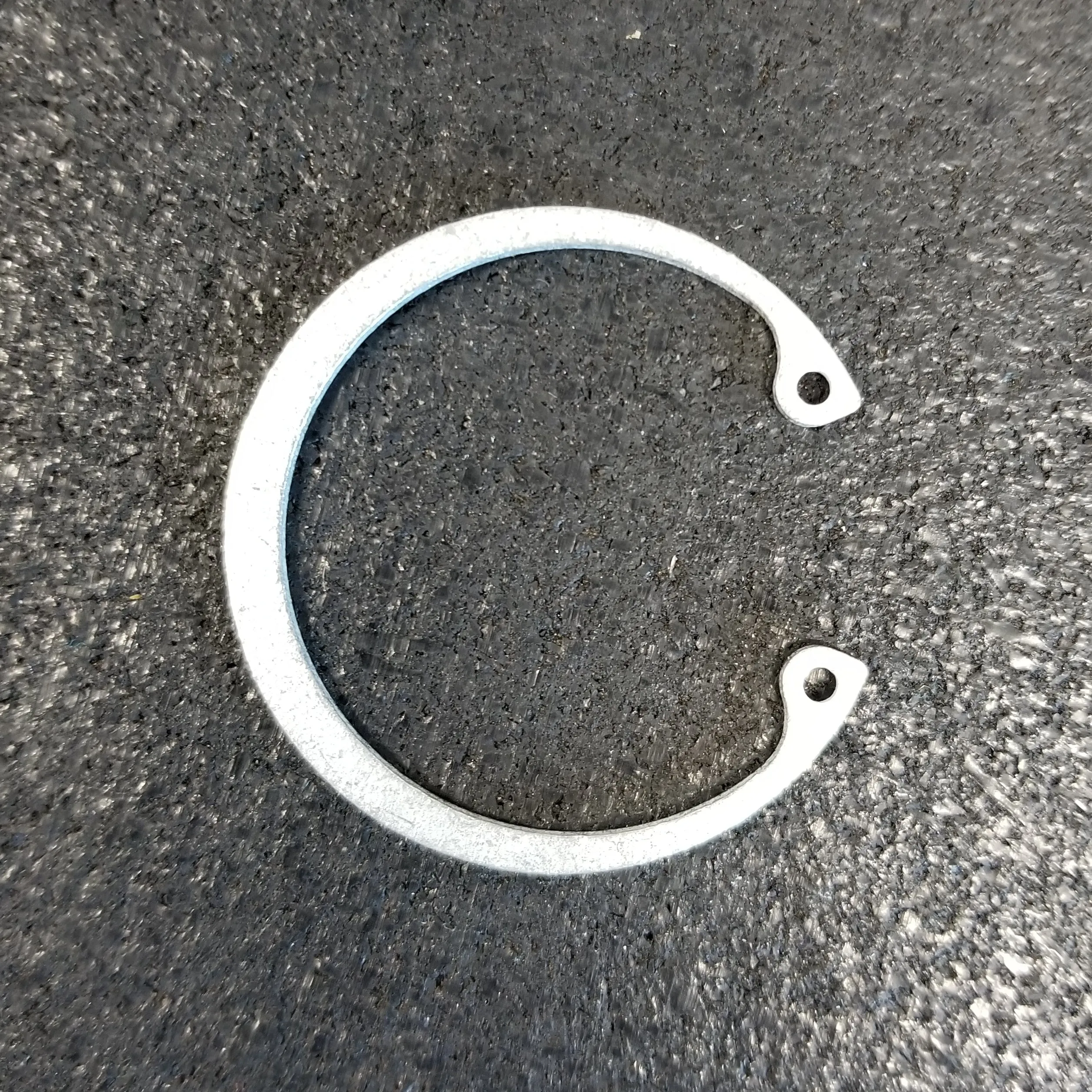

INTERNAL RETAINING RING 1-7/16 INCH ID (1.438")
Proper fit of an internal retaining ring is incredibly important. These rings fit into numerous components and housings. As radial tension in the component builds, the internal retaining ring will push it away from the center to the walls. This allows the piece to stay in its place.
Direct OEM replacement for the Cybex ARC Trainer - OEM# BR030225
- CYBEX 770 AT ARC TRAINER - 770AT - Total Body
- CYBEX 771 AT ARC TRAINER - 771AT - Total Body
- CYBEX 772 AT ARC TRAINER - 772AT - Total Body
- Cybex 610A ARC TRAINER - 750AT - Total Body - Serial# Y02 - Current
- Cybex 750AT ARC TRAINER - 610A - Total Body - Serial# C1215750AT - Current
- Cybex 630A ARC TRAINER - 630A - Total Body - Serial# A07 - Current
- Cybex 425A ARC TRAINER - 425A - Vertical ARC Trainer - Serial# A12 - Current
| Section Width Maximum | 0.133" |
| Section Width Minimum | 0.065" |
| Groove Diameter | 1.528" |
| Thickness | 0.050" |
| Free Outside Diameter | 1.596" |
| Bore Diameter | 1-7/16" |
| Plier Hole Diameter | 0.078" |
| Groove Depth | 0.045" |
| Style | HO (Housing Ring) |
| Lug Height | 0.180" |
| Finish | Phosphate |
| Ring Number | 143 |
| Material | Steel |
| Type | Internal Retaining Ring |
| Groove Width | 0.056" |
| Product Weight | 0.6 |
| UOM | 1 Ring |

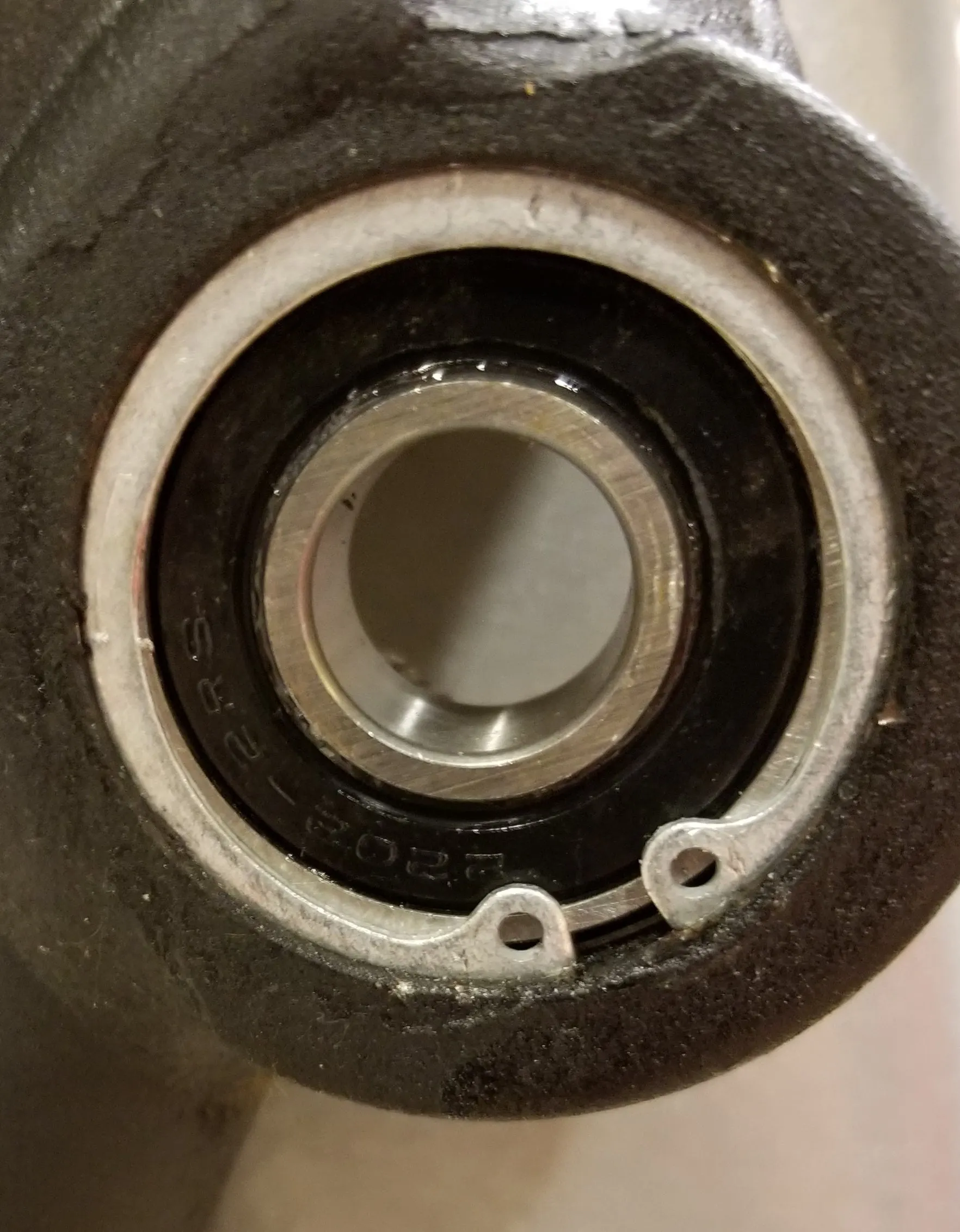

Once installed in the groove of a housing/bore, the portion of the ring protruding from the groove (also called a "shoulder") holds an assembly in place.
